MR2.5 Brompton

Absen new logo PNG
Download specification PDF

Description

MR Series Professional LED Floor Display

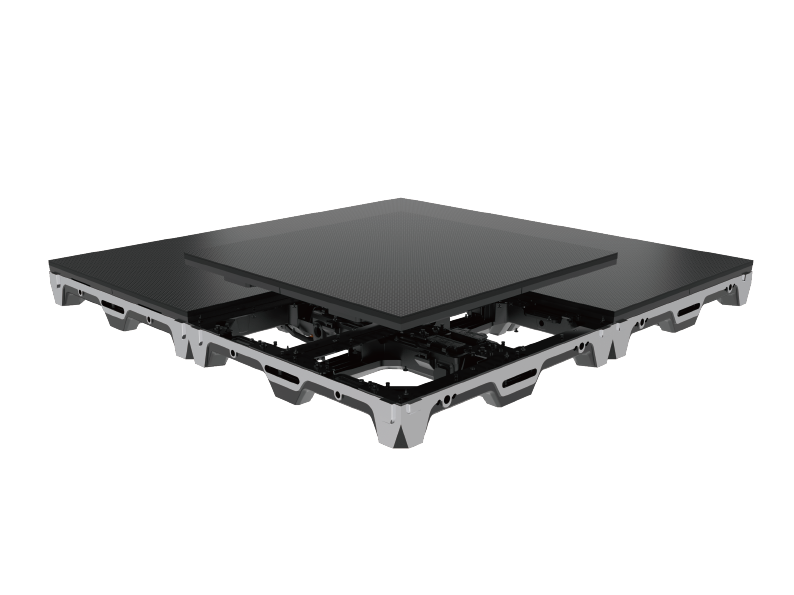

Absen MR-Series adopts a two-in-one design featuring an aluminium chassis cabinet and a separate optional carbon-fibre sub-floor frame, allowing the option to install a thinner and lighter LED floor solution in certain applications where the floor can be built without adding sub-frames at the bottom.

The MR2.5 adopts a high-strength frame design to ensure safety and firmness. The maximum load-bearing capacity is 2500kg/㎡, which ensures safety & durability through challenging on-stage activities. The surface of MR is covered with a matte finish which is easy to clean as well as features a scratch-resistant layer, creating a long-lasting and high-impact visual staging effect.

Designed for xR & Virtual Studio Compatibility

MR2.5 uses a GOB SMD packaging process resulting in deep blacks with a non-reflective surface. Specified with Brompton R2 processing, the wide colour gamut and high-contrast performance of MR2.5 produce impressive in-camera performance versus other LED floor technologies.

The MR floor can be combined with PL2.5 Pro V10 Brompton 2.5mm LED walls to create stunning floor-to-wall 2.5mm displays running from the same Brompton controllers. These products are perfectly suited to xR stages and virtual studios, as well as eye-catching corporate and live events.

Easy installation & Maintenance

As a professional floor display solution, the MR series supports front/top installation, making it easier for users to build and operate. Modules, chassis and frames are cased separately for safe transport and allow for easy install whilst minimising any handling damages.

MR2.5 Brompton Features

Pixel Pitch mm: 2.5
Processing: Brompton (R2)
Driving Type: 1/20 Scan
Brightness (nits): 1000
Refresh Rate (Hz): 3840
Pixel Configuration: SMD 1515 (GOB)
Native Resolution (Per Panel): 200x200
Panel Dimensions WxHxD (mm): 500x500x80
Viewing Angle (hor./vert.) 160/160
IP Rating Front/Rear: IP65/54
Power Consumption Max./Avg. m²: 640/214
Panel Weight kg/panel: 12
